SCREW COMPRESSORS

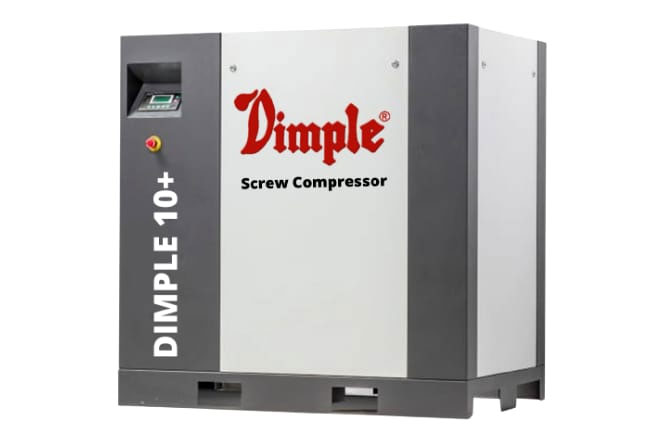

10HP Screw Air Compressor
HP 10
KW 7.5
BAR 8-10-12
CFM 45-42-38
M3/Min 1.30-1.02-1.08
10HP Screw Compressor
HP 10
KW 7.5
BAR 8-10-12
CFM 45-42-38
M3/Min 1.30-1.20-1.08
15 HP Screw Air Compressor
HP 15
KW 11
BAR 8-10-12
CFM 62-59-56
M3/Min 1.80-1.70-1.58
15 HP Screw Compressor
HP 15
KW 11
BAR 8-10-12
CFM 62-59-56
M3/Min 1.80-1.70-1.58
20 HP Screw Compressor
HP 20
KW 15
BAR 8-10-12
CFM 88-85-82
M3/Min 2.25-2.40-2.32
25 HP Screw Compressor
HP 25
KW 18.5
BAR 8-10-12
CFM 101-98-94
M3/Min 2.86-2.78-2.66
30 HP Screw Compressor
HP 30
KW 22
BAR 8-10-12
CFM 125-121-115
M3/Min 3.52-3.44-3.28
30 HP Screw Compressor
HP 30
KW 22
BAR 6-8-10
CFM 144-128-114
M3/Min 4.07-3.63-3.23
40 HP Screw Compressor
HP 40
KW 30
BAR 6-8-10
CFM 205-177-155
M3/Min 5.08-5.04-4.40
50 HP Screw Compressor
HP 50
KW 37
BAR 6-8-10
CFM 254-230-191
M3/Min 7.20-6.50-5.43
60 HP Screw Compressor
HP 60
KW 45
BAR 6-8-10
CFM 314-276-240
M3/Min 8.88-7.83-6.80
75 HP Screw Compressor
HP 75
KW 55
BAR 6-8-10
CFM 392-336-293
M3/Min 11.01-9.53-8.29
Rotary screw air compressor are simply rotary positive displacement machines, capable of high speed operation over a extensive range of operating pressures and flow rates at high efficiencies. In screw air compressors there are no valves or other mechanical forces that can cause imbalance. This allows a compressor to operate at high speeds, while combine a great flow rate with small exterior dimensions. Rotary Screw Compressors supply production process in industry, trade and workshop applications with a reliable supply of quality compressed air. These are the preferred choice for users requiring constant pressure over prolonged periods. Rotary screw air compressors are a type of rotary volume compressor and thanks to their reliability, long lifetime and flexibility, these are generally used in a lot of different industries. Rotary screw compressors supply production process in industry, trade and workshop applications with a consistent supply of quality compressed air. These are the preferred choice for users requiring constant pressure over extended periods.
State-of-the-art Compressor Air End
Optimal energy efficiency and outstanding reliability is achieved from patented design third generation non-symmetric robust rotors, superior bearings & oil seal that help the compressor air end to operate with good dynamic balance, low vibration, low rotation speed and low noise level. Intelligent PLC Control Panel the simple-to-use automatic electric control panel continuously monitors and displays overall system performance status with pro-active service indications, alarms for malfunctions and safety shutdowns. Advanced sequence control for multi-units installation and remote controls option.
Intelligent Electric Control Panel
The control and regulation system elaborates the pressure signals received by the sensor included inside converting them into signals that modify the free air capacity. With a correct programming it is assured a stable flow of compressed air to match the variable demand with a Minimum pressure variation is capable of:
- To keep under control of all parameters included in the unit
- To modify the programmed conditions as required (within the pre-set limits)
- To determine maintenance requirements
There is also visible:
- Start push button
- Delayed stop push button
- Emergency stop push button
It is also included a programming button that allows to the user to modify the operating parameters of the compressor itself (within the pre- set limits) to adapt these.
To program the stop & start of unit in accordance to the requirements. There are in the electronic panel itself luminous displays to visualize the following:
- One display to indicate the operating Pressure
- One display to indicate the operating Temperature
- Alarm messages
- State messages
- Maintenance messages
Reliable Automatic Control Box
Electronic components of the IP54 automatic control box such as relays, contactors and overload relays are from named brand Siemens to provide safe & reliable compressor control solution.
MODERN CONCEPT SUCTION CONTROL SYSTEM
Modern concept suction control valve with automatic closure to prevent any oil escape. The control unit can automatically adjust from 60 -100% according to the system air demand to effectively minimize operating cost.
HIGH EFFICIENCY AFTER COOLER
The enlarged high efficiency oil and air combination air-cooled after cooler is specifically designed for South East Asia climate to assure all components work perfectly even under high ambient temperature & humidity summer season. All design data are referenced at 46°C ambient temperature High Quality Genuine Spare Parts All high quality and durable spare parts are designed, manufactured and tested in Europe to meet with the most stringent international Standards. High Efficiency Intake Filter System Big surface air filter element can efficiently remove dust particles from intake cooling air and at the same time to maintain low noise level.
MULTI-STAGE AIR/OIL SEPARATION SYSTEM
The latest European Patented multistage air/oil separation system to guarantee low residual oil content of less than 1 – 3 p m. This exceeds any international standard of oil injected rotary screw air compressor and is particularly suitable for customers with clean air for applications.
MODERN CONCEPT SUCTION CONTROL SYSTEM
The control unit of the suction control valve can automatically adjust from 60-100% according to the system air demand to effectively minimize operating cost.
MAINTENANCE FREE TRANSMISSION SYSTEM
The air end is connected directly to an electric motor (with or without step up gear). Direct transmission is an important characteristic of our big capacity screw compressor packages as it makes possible the operation of air end with the maximum efficiency.
LOW NOISE DESIGN
Low Noise achieved by the low-noise rotor profile, adoption of vibration proof driving system and low noise structure of suction and exhaust MODERN CONCEPT SUCTION CONTROL SYSTEM.
